Videopath SW-44 (SW44) Multi-Dish Switch with Power Inserter and Adapter

Videopath SW-44 (SW44) Multi-Dish Switch with Power Inserter and Adapter
The legacy SW44 switch is used to expand two legacy dual LNBF's to four outputs to allow for additional receivers. The SW44 multiswitch combines signal from Bell TV's 2 satellites at 91°W & 82°W (orbital positions) and provides output for up to 4 tuners.

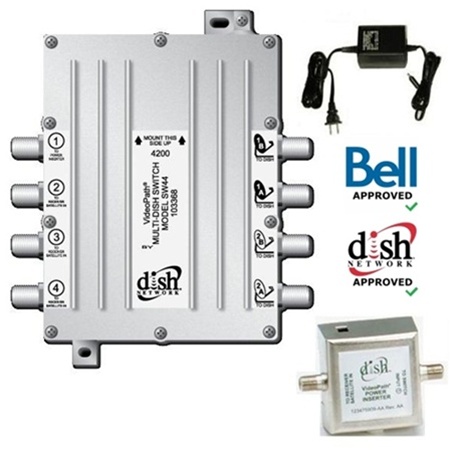

Bell and Dish Network approved switch. Complete SW44 Switch Assembly includes: SW44 Switch, Power Inserter and Power Supply and installation instructions. Brand new in box, 12 month warranty.
The AC/DC power supply (a) connects to the in-line power inserter (b). The main switch (c) can be connected anywhere in the distribution system and receives its power from the power inserter via one of its 4 outputs.
The 2 outputs from each LNBF of the elliptical antenna (or from each LNBF of each antenna) MUST be connected to the switch (4 inputs in total, in order to provide 1 to 4 outputs).
Price: $69.99

Connections should be as follows:
Nimiq 1 goes into 1A & 1B.
